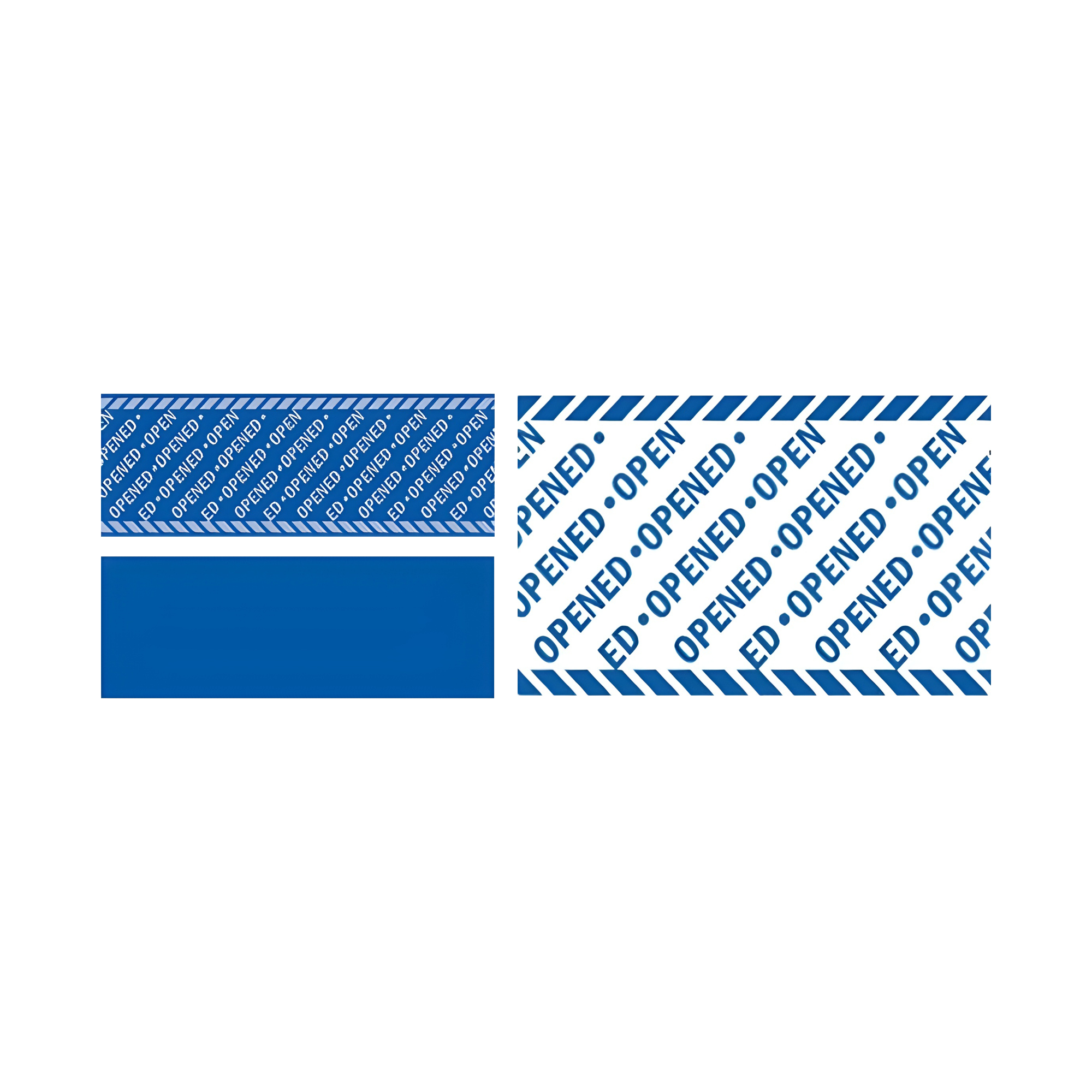

Continuous Security Tape
Roll Data
Metric Imperial
Material Width Standard 50.8mm Standard 2”
Roll Length 50 metres 164 ‘
Core I/D 76mm 3″
Material Data
Test Method Metric Imperial
Film BOPP BOPP
Thickness n/a 50µ 0.00196”
Tensile strength (MD) ASTM D 882 @ 50%/min 210 MN/m²
Tensile strength (TD) ASTM D 882 @ 50%/min 175 MN/m²
Elongation at break (MD) ASTM D 882 @ 50%/min 85% 85%
Elongation at break (TD) ASTM D 882 @ 50%/min 105% 105%
Adhesive Data
Adhesive Formulated hot melt Formulated hot melt
Adhesive thickness 30-45 gsm (~30-45µ) 1.18 – 1.77 thou
Softening point (Mettler drop point) 92ºC 197.6ºF
SAFT 59ºC 138.9ºF
Peel (20 min, glass) 35N / 25mm 309 inch pounds
Peel (24 hours, glass) 37N / 25mm 327 inch pounds
Tack (glass) 60N / 25mm 531
Shear (25mm x 25mm, 23ºC, glass) 3 Days 3 Days (1” x1”, 73.4ºF, glass)
Shear (25mm x 25mm, 40ºC, steel) 1.5 hours 1.5 hours (1” x1”, 104ºF, steel)
